ø50 Absolute Singleturn Encoder AUS50-pushpull with clamping flange

ø50 Absolute Singleturn Encoder AUS50-pushpull with clamping flange

Singleturn resolution up to 12 bits

Magnetic technology

External diameter 50mm

Shaft Ø06mm

Connection by 1 meter cable

(other cable length available)

Model：AUS50-D0626

￥ 0.00
0.00

Product Description

Singleturn resolution up to 12 bits

Magnetic technology

External diameter 50mm

Shaft Ø06mm

Connection by 1 meter cable

(other cable length available)

Model：AUS50-D0626

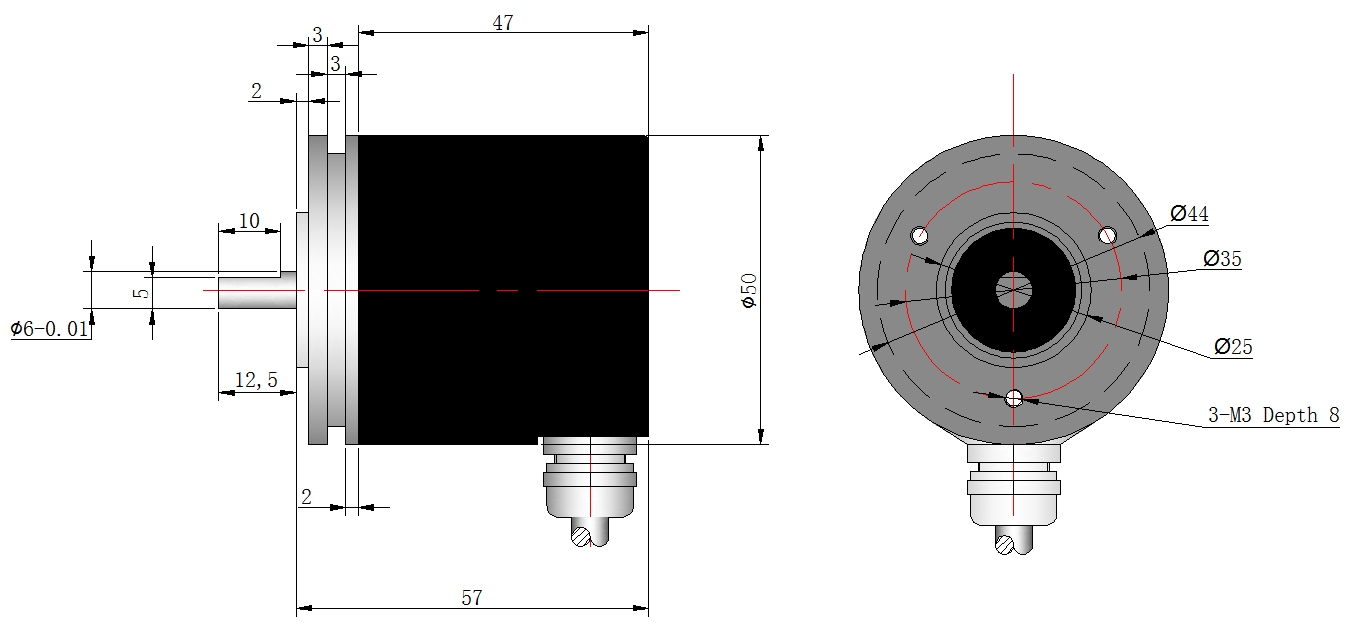

Mechanica Characteristics
Interface

pushpull

Power supply10~30 VDC
Current consumption24 V ≤ 120 mA

Singleturn resolution

≤ 10Bit

Output code

Gray code
Shaft typeClamping flange
Shaft diameter06mm
HousingAluminium
ShaftStainless steel


Environmental characteristics
RoHs compliant acc.to

IEC 62321-3-1:2013

Vibration [EN 60068-2-6]

10g 10-2000Hz

Shock [EN 60068-2-27]

100g,6ms

EMC

EN 61326-1

Standard temparature

-25 °C ... +85 °C

Optional temperature

-40 °C ... +85 °C

Protection class DIN EN 60529

IP65 shaft side /IP67 housing side
